There was a version of this model in the 1916 Meccano Instructions Book, and in 1928 an improved version was issued as a Super Model (number 7 in the series). It was included initially with Outfit 6 and subsequently with Outfit K.
This is a simple model, as Super Models go, and the build didn’t give any serious problems. The finished scales work OK, but they aren’t particularly accurate. I’m pretty sure that’s because the crucial knife-edge bearing is nowhere near sharp enough. It’s formed by balancing two centre forks on the teeth of a couple of pinions, and centre forks really aren’t sharp enough for the job. I could have experimented with something like a Stanley knife blade instead, but I decided to leave it as it was and move on.
Build issues
There weren’t very many of these:
The scale on the original is just a long strip of unsupported card. I backed this card with a 9.5″ strip, with an angle bracket at each end.
The 1934 version of the leaflet I was using (from Geoff Wright’s reprint book) illustrates the model using 5.5″ braced girders for the base, but some added text says use strip plates instead – the braced girders were no longer included in the new Outfit K. The parts list omits the braced girders, and includes 3 of part 195 instead. Post-war part 195 was a 7.5″ by 2.5″ strip plate, which makes no sense for this model. However, from 1934 to 1938 part 195 was a 5.5″ by 2.5″ strip plate, which is what was intended for this revised version of the model. I used braced girders – if you want to use 5.5″ by 2.5″ flexible plates (part 192) then you’ll probably need to add more rigidity to the framework.
The parts list omits one of the three 5.5″ angle girders you need, three reversed angle brackets, and about 10″ of sprocket chain.
…or to give it its full title, ‘Travelling Bucket Dredger, or Conveyor’
September 2026
Introduction
This machine was intended to dredge harbours and canals, to keep the water deep enough for shipping. It needed rails to be laid along the waterside which probably limited its applicability to big construction projects, and these days such dredging is largely done with floating pontoons and barges – in my experience anyway.
The model has two sets of rails, one inside the other. The outer three rails let the dredger move along the waterside, while the inner rails are for Hornby tinplate tipper wagons, so the dredged material can be taken away for disposal. The prototype dredger scooped sand, gravel and mud up from the bed of a watercourse and dumped it into a railway wagon. My model uses imaginary water, and scoops up Tesco’s risotto rice grains instead of sand and gravel – a lot less messy and a lot better for my Meccano and the living room. The dredger arm also moves up and down, so there are three separate mechanisms, all powered from a Meccano electric motor, with a gearbox to allow each motion to be selected individually.
The earliest version of this model I’ve found is in the 1923 Meccano Instructions Book, for building with Outfit 7. It’s virtually the same as the Super Model version, which was published in 1928 along with most of the other Super Models. It’s Super Model number 5.
My thoughts on the model
I was looking forward to building this one, and it didn’t disappoint. I’d bought some Hornby tinplate railway bits – some straight track, a loco and a few wagons, including a couple of the side-tipping McAlpine wagons featured in the Super Model 5 leaflet. I’d bought 5 digger buckets and we already had a 1kg bag of risotto rice left over from a holiday trip. And I had plenty of angle girders for building the dredger’s track – the track parts aren’t included in the parts list.
Before I started the build my main concern was with the dredging action. Would I be able to get the long chain to stay on the sprockets? I’ve had plenty of problems with much shorter chain runs than this one, which uses a full 40″ chain length. Would the bucket fastenings cause the chain to come off the sprockets? Each bucket is fastened to the chain, so could easily foul the sprockets. Would the chain come off as soon as the first bucket touched the rice? To my surprise it just worked, with very little extra fettling. And it went fast.
It was a satisfying model to build, and a fairly unusual one. It needs the train, or you’re going to be dumping the dredged material all over the place. It needs to be on two levels, one for the dredger and one to represent the watercourse at a lower level. The leaflet instructions and illustrations are pretty good in most areas but not perfect, so I’ve given a few build notes below.
Build notes
The framework
This was where the instructions and illustrations weren’t full enough. I’ll add a few extra tips here, to save a bit of head-scratching if anyone else is interested in building this one. References are to Fig. 3 in the leaflet.
There is a horizontal strip visible to the upper right of the picture. This is a 9.5″ strip (part 1a). The parts list incorrectly says you need a 12.5″ strip (part 1).
The flat girder in the picture is part of a z-shaped composite girder: two 12.5″ angle girders plus the flat girder.
You can see the end of a diagonal bracing 5.5″ strip, numbered 56. What you can’t see anywhere is that there’s another one on the other side (to the left of the picture).
The gearbox
The three moving axles are 6.5″ rods. They are a bit long for the job, and you need to ensure most of the excess sticks out on the lever side, not on the side where the railway is. This is to give room for the trucks.
The hinges for the levers kept coming loose. I fixed this by joining the three angle brackets with a 3.5″ screwed rod. Each bracket was lock-nutted to the rod, and each lever was lock-nutted separately immediately above its angle bracket with a washer between the two sets of lock-nuts. This was a lot better, but still not perfect. I did manage to get a bit of friction into the hinges though, so the gears didn’t slip all the time.
The grub screws in two of the 0.5″ pinions fouled the adjacent 1.5″ gears when the gears were disengaged. I fixed this with short grub screws (part 69c). I fixed a similar problem on the 2″ sprocket at the hinge end of the dredger arm in the same way – it was fouling the girder.
The wheels
The two driving wheels didn’t give enough friction on the rails – they slipped badly. I replaced each flanged wheel with a bush wheel, a 1″ pulley without a boss, and a 1″ pulley with a boss, with rubber rings on each pulley, and the tyres pushed together. I had to replace the 5″ axle with a 5.5″ axle. This fixed the problem.
The two wheels at the water’s edge aren’t journalled properly, so tend to lean. I fixed this by replacing the trunnions with channel bearings.
The rails
As mentioned above, the parts for the rails aren’t included in the parts list. I built 49″ of rail, with three pairs of 24.5″ angle girders, the pairs joined butted together, and each pair joined with a 5.5″ strip. The girders need to have their long holes horizontal so you can adjust the rail widths, and the 5.5″ strips need to be bolted to the round holes of the girders, on the side that won’t foul the wheel flanges.
The sleepers need to be 9.5″ strips, and you need to raise the rails above the sleepers a bit, to make sure the tipper wagons don’t foul the dredger’s chute. I did this by fixing the sleepers to the rails with 3/8″ bolts, with 5 washers between sleeper and rail. This just gave me enough clearance.
The arm sprocket chain
On my first attempt I had the chain set up with the end of each link on the outside of the loop, pointing backwards (in relation to the direction of chain travel). That’s how I usually set up chains. This didn’t work – the chain kept coming off. So I tried it with the end of each link on the inside of the loop, again pointing backwards. Problem solved, and I don’t know why it worked. Whether it was connected with the buckets, or just because of the length of the chain, or a dodgy link or two, I just don’t know. Anyway, next time I have trouble keeping chain on sprocket I’ll be trying the same dodge.
The parts list
The parts list was reasonably accurate apart from the 9.5″ vs 12.5″ strip mistake mentioned above. The only other significant error was that you only need three 6.5″ rods, not 13! I had a handful of minor parts left over, and no idea where they were supposed to have fitted, but I can live with that sort of mistake.
The full title of this one is ‘6-Inch Howitzer Equipped with Limber and Tractor’. Which is a bit of a mouthful. This is the last in the numbered series of Super Models, first appearing in leaflet form in 1930, and it was included with Outfits 6 and 7. It probably had its origins in a similar model published in the 1916 Meccano Instruction Book, but that was a considerably simpler model without armour on the tractor, and without an operational gun.
The Super Model version very much has an operational gun. The leaflet claims it can fire a Meccano washer up to 30 feet, and I can confirm that it does. Care needs to be taken when loading and firing this model: the washers come out with enough force to do serious damage to someone’s eye, and there’s no safety catch. No statistics on how many Meccano boys were injured by these guns are available, although Meccano did publish more dangerous models, which I hope to build later. With care. Not guns though – I’m not really interested in building military models. The Howitzer is one of the Super Models though, so I had to build this one.
Building the model
This next section is mainly documentation to help anyone else who wants to build this model. Jump to the ‘Limber’ and ‘Tractor’ sections when you get bored with it…
The Howitzer
There are a few key parts missing from the Howitzer parts list:
Two compression springs
An additional 2 1/2″ girder (7 not 6)
An additional two reversed angle brackets (4 not 2)
The Howitzer – the gun carriage
This is made up of two main parts: the gun carriage and the barrel/recoil chamber. The carriage was a pretty straightforward build. The instructions and illustrations are clear enough, and the only things I had to change were the lengths of some of the bolts. The brakes are quite neat, although they lack an effective mechanism to move the brake shoes away from the wheels when the brakes are released.
The Howitzer – the barrel, recoil chamber and firing mechanism
This was a different kettle of ballgames altogether. The instructions and illustrations are as clear as mud. So much is not explained or shown clearly, and I had to try things out and learn from my mistakes a lot. The recoil chamber was reasonably easy to work out with a bit of trial and error. The illustrations aren’t bad, but the instructions don’t really explain what everything is for. For instance it took me a long time to work out that the barrel is supposed to slide along inside the recoil chamber. I’d recommend putting a washer between the long hole of angle bracket 24 (Fig. 4) and the flat plate, so the bracket can clear the girder. I’d also recommend adding a second similar angle bracket 1″ further back along the flat plate so the barrel is less free to wiggle up and down. I also mounted the sighting apparatus 2 1/2″ double angle strip 34 (Fig. 2) to the top of the recoil chamber with a 1″ screwed rod rather than a short bolt: it gave better control of the movement of the strip.
And so to the barrel. The illustrations and instructions are both hopeless. Maybe in the original leaflet the pictures were clearer, but in my Geoff Wright reprint book they are really not enough to work out what’s going on. In the exploded views I couldn’t even tell which way was up. In case anyone else wants to build this model, I’ll try to make things clearer. First a photo of the left-hand side of the barrel and firing mechanism, together with the ramrod:
…and the right-hand side of the barrel and recoil chamber. Note the loop of cord on the recoil chamber, used to get the recoil spring in place (covered later on):
…and for completeness, here’s the left-hand side of the recoil chamber:
Notes:
The elongated holes in the girders 15 and 15a (ref Fig. 4 in the leaflet) are at the top and bottom. Aim to assemble the box section wider rather than taller, i.e. when looking down from above you should be able to see one edge of the underneath girder.
There are no bolts or anything else attached to the sides of the girders. This means it can slide freely inside the recoil chamber.
There are no bolts or anything else attached to the top of the girders, apart from the rear 1″.
There are no bolts or anything else attached to the bottom of the girders, apart from the rear 2″.
Inside the girders, starting from the rear are a coupling 16, a collar 18, and two compression springs (the latter are missing from the leaflet parts list). Through all of these runs an 8″ rod, which needs to be polished shiny if you want to reach 30ft with it. The compression springs need to be overlapped together – 2 or 3 turns is enough. The rear end turn of the rear spring needs to be bent down 90 degrees.
The bolts in the top girder: The end hole holds a set screw with a washer on, which goes through the girder, then another washer, then screws into the rear end of coupling 16. The next hole holds 3/8″ bolt 17 (which will later have a tension spring on it), which then goes through the girder and a washer and also screws into the coupling. The other end of the spring needs to be attached to 3/8″ bolt 29 of the recoil chamber (see Fig. 4), and this needs doing before trying to fix the spring to bolt 17, as you won’t be able to get at bolt 29 once the barrel is in place.
The bolts in the bottom girder: The end hole holds angle bracket 21, part of the firing mechanism. A set screw goes through the round hole of the angle bracket, then the girder, then a washer, then screws into coupling 16. The angle bracket needs to be on the left-hand side of the barrel. The second hole in the girder holds angle bracket 20, also part of the firing mechanism. A set screw goes through a washer, the round hole of the angle bracket, the girder, another washer, then screws into coupling 16. This angle bracket needs to be on the right-hand side of the barrel. The third hole is used to fix collar 18 and the compression springs in place. A set screw goes into the girder then through the bent over end of the rear compression spring and screws into the collar. Note that the collar needs to be spaced a short distance away from coupling 16 to make this work. The fourth hole in the bottom of the girder will hold the end of the bolt acting as the firing catch (3/4″ bolt 22, see Fig. 4 and below).
The various bolts holding the barrel and the 8″ rod will need adjusting to make sure that the rod is mounted centrally all the way along.
The firing mechanism is also difficult to work out from the leaflet. If you’re trying to build this, the photos above should help. Some additional notes:
Fix the firing handle 19 (a 1 1/2″ rod) into the end hole of a coupling.
Fix a 3/4″ bolt to the end hole of a 2″ strip, and tighten the nut well. This is the rear end of the 2″ strip, which will end up being mounted about 1/2″ below the rear end of the barrel, with this bolt head on the right-hand side.
Fix a coupling to the other end of the 2″ strip so it lies alongside the end two holes of the strip. Both bolts should be fed in from the same side of the strip as the 3/4″ bolt was. Use a set screw for the end bolt – the shortest one you’ve got. This set screw holds in place 3/4″ bolt 22, which you feed through the coupling from below (i.e. if you’re looking at the strip from the bolt-head side, with this bolt on the right, feed the 3/4″ bolt up from below and tighten the set screw on it). You can use a normal bolt for the second hole in the strip, which fixes the strip securely to the coupling.
You are now ready to fix the 2″ strip to the barrel. This is a fiddly job as:
You need to make sure the front two bolts and the coupling don’t stick out widthways beyond the profile of the barrel. If they do, they won’t go through the recoil chamber.
The 3/4″ bolt 22 needs to move slightly in and out of the fourth hole in the barrel when you move the firing handle. It doesn’t need to come out completely though.
Put a bolt through the remaining hole in the 2″ strip, from the opposite side from the other bolts, and lock-nut it to angle bracket 20, the one on the second hole of the barrel. Lock-nut with a nut each side of the bracket, locking the bolt to the bracket, at the bottom end of the bracket’s long hole, i.e. away from the barrel. The strip needs to be on the left-hand side of the bracket, and at the same time you will be feeding the 3/4″ bolt in the adjacent hole of the strip through angle bracket 21, and the other 3/4″ bolt 22 should feed into the fourth hole of the barrel.
Now fix the bottom end of the firing handle coupling to the rear 3/4″ bolt so they are at right angles to each other and the firing handle points upwards (see Fig. 2). I did this by putting a nut on the bolt, screwing the coupling on to the threaded hole of the coupling, then lock-nutting the nut to the coupling. This seems to stay tightened better than the alternative of using the unthreaded hole of the coupling and securing it with bolts or grub screws.
Loading and firing
Firstly I need to reiterate that this gun is potentially dangerous, particularly to the eyes. From the moment I compressed the spring to the moment it fired I was careful never to point the barrel at anyone, including myself. It could go off at any time without warning. Looking up the barrel to find out what’s gone wrong is not a good plan.
According to the leaflet, you can just push a washer down the barrel with a 7 1/2″ strip, but this doesn’t really work. Pushing a washer with a strip just jams the washer sideways. What does work, after a fashion, is putting a collar on the rod after the washer, and pushing them both with the strip. You can then, with luck, get the 3/4″ bolt to catch the edge of the washer and hold it there. The trouble is, you’ve now no way of getting the collar out again other than firing it along with the washer (and it will go nearly as far, by the way). In any event, catching the edge of the washer with the bolt was pretty tricky, and the gun was liable to fire on its own. After trying out a few possible improvements I ended up using an aero collar rather than a normal collar. An aero collar (part P52) is slightly smaller in diameter than a normal collar, and this gave more of a lip to catch with the bolt, improving the reliability of the catch mechanism. I also fixed a short length of cord to the collar by trapping it in with a short grub screw (part 69c), and tied the other end of the cord to the 7 1/2″ strip, so I could retrieve the collar with the strip. Even with this approach, getting the bolt to catch on the edge of the washer was not at all easy. And it was even harder when the barrel was fitted to the rest of the howitzer, as I couldn’t see what I was doing.
Fitting the recoil spring
Once the gun appeared to fire reasonably well, the barrel needed to be fixed into the recoil chamber with the recoil spring. You can’t access the front end of the spring with the barrel in place, so I needed to fix the spring to the front 3/8″ bolt 29 (Fig. 4) first. I first fixed this bolt in place with a nut. Then I tied a loop of cord to each end of my tension spring and fed one loop through the recoil chamber and hooked the spring over bolt 29. My reed hook came in handy here. I lock-nutted two nuts over the bolt, securing the front end of the spring. Then I inserted the barrel, carefully removed the 3/8″ bolt 17 from the barrel, pulled the other cord loop to stretch the spring, and replaced bolt 17 securing the back end of the spring. This was fiddly. Then I removed both cord loops.
Fitting the gun to the gun carriage
I hoped this was going to be straightforward, but it wasn’t. First I had to adjust the recoil chamber a bit so I could feed the 2 1/2″ rod through it. That would have been easy if it wasn’t for the fact that the recoil spring was in the way. The spring needs to run over the top of the rod, and in order to push the rod through you need to hook the spring up out of the way temporarily. OK, so I did this using my trusty reed hook again, and got the rod through. It doesn’t need to run freely, as it will journal in the two triangular plates 30 (Figs. 2 and 3) on the carriage.
But you can’t just fit the gun onto the carriage with the rod in place. You have to feed the rod through one triangular plate, through the recoil chamber, then through the other triangular plate, adding collars along the way, and all the time keeping the recoil spring out of the way. It needed about five hands. By the time I’d done all that I’d had enough for the day. And the barrel was no longer running freely in the recoil chamber, so I had to fix that too.
The elevating apparatus was easy enough to sort out. It needs a 4 1/2″ screwed road as per the parts list, not the 3 1/2″ rod the text specifies. I used two pairs of nuts, each pair lock-nutted together, rather than two collars to hold the rod in place – it works better. I bent the angle bracket out to about 110 degrees.
The Limber
This was easy to build. You need plenty of washers if you want to load it full of ammo. Which is what the limber is for.
The Tractor
The beetle on its back:
This was interesting, and a bit tricky in places. It’s got caterpillar tracks made from sprocket chain, and they don’t really work very well. It’s an impressive design attempt though. I’d have liked to try slowing the sprocket chains down a bit, but there was so little space to do it. Visually, the tractor looks like a metal brick, but I suppose that’s fair enough, considering what it’s representing. Working on the tractor was fiddly, as there’s a lot crammed into a small box.
I had to extend my 1950s motor by 1″ at the top front using 1″ corner brackets, and you need three 1/2″ pinions for the gear train, not the two quoted in the parts list.
There are a couple of significant mistakes in the text of the ‘Building the Tractor’ section of the leaflet. These took me a while to sort out. The first is in sentence 2 where it refers to ‘Four 3 1/2″ x 2 1/2″ Flanged Plates’. You only need three of them. The front top can’t have one, as it would foul the gears. You have to be careful locating the bottom flanged plates: I ended up with the front of the front one directly above the end of girder 39 (Fig. 5), and the back of the back one 1/2″ further forward than the top flanged plate. The second error in the text is in the description of the gear train, where a bit has been missed out. Para 2 sentence 3 should read: ‘This pinion meshes with a 50-teeth Gear on the Rod 40, which also carries a 3/4″ Pinion. This engages with a 50-teeth Gear on the Rod 41, and this Rod carries also a 3/4″ Sprocket Wheel that is connected by Sprocket Chain to a 1″ Sprocket Wheel 42 on a slidable lay-shaft.’
This is Super Model no. 6, and is one of many Meccano cranes. I have to confess I wasn’t really looking forward to building it: in the leaflet it looks very simple and not very impressive. Once built, however, it’s quite an elegant and impressive thing. It’s big, for one thing. What’s more, it works properly – I take my hat off to whoever designed this one.
A smaller version of this model was in the 1916 Meccano Instruction Book 1, and the Super Model version first appeared in 1925. The build instructions were issued in leaflet form from 1928.
The Build
This was reasonably straightforward for a change, and I enjoyed putting it together. Perhaps because it’s a skeletal model, the leaflet pictures show most of the detail you need and there’s relatively little guesswork needed.
As usual the leaflet parts list is incomplete and inaccurate: you need more cogs and sprockets, you need an extra 5 1/2″ strip and four 2 1/2″ angle girders. And the parts for the radius indicator aren’t included in the parts list. On the other hand you don’t need any 3 1/2″ angle girders – the six I had ready I used as a load for the crane instead.
I made one improvement to the gearbox. There are two levers (24 and 26 in Fig. 5) that move rods to change which crane function to engage (rods 16 and 25 in Fig. 5). There’s nothing to stop the levers moving with the vibrations of the motor, and engaging or disengaging cogs when you don’t want that to happen. This is a common problem with Meccano gearboxes, and I’ve fixed it in different ways. This time, it was easy to fix lever 26 by tightening up the bolt fastening it to the trunnion, giving it some friction. Lever 24 needed a bit more thinking about. What I ended up doing was moving lever 26 and the trunnion over by 1″, which made room to mount a short rack strip 1/2″ above and in front of the 5 1/2″ strip (parallel to it), using a couple of reversed angle brackets. The rack strip is there to stop the lever 24 from moving on its own, so I needed the lever to engage intermittently with the rack strip. I put a compression spring onto a centre fork, pushed it through the top hole of lever 24, and fixed a handrail coupling to the fork. This meant I could move the lever by pulling the handrail coupling and centre fork back against the spring, moving the lever sideways, then letting the spring push the centre fork back into a new position on the rack, holding the rod in its new position. A 1″ rod through the handrail coupling made it easier to hold. And I labelled up the three positions on the rack so I’d remember what was what.
Oh, and I used anchoring springs rather than spring clips to anchor the two cords in the gearbox.
To be honest I just built this one to get it ticked off. I’m trying to build all the 1920s/30s Super Models, and this is one of them – number 25. It’s just not that super. It’s based on a hydraulic-powered crane, but doesn’t really convince as that, since there’s little sign of hydraulics, or anything looking like them. The prototype runs on rails, but the model won’t, as there’s no flanges to the wheels. And it’s not very big and not very complicated. It did, however, win a prize in a Meccano competition, and appeared on the front of Meccano Magazine in the January/February 1921 issue.
I didn’t have any problems with the build really. There are a few things missing from the parts list, as usual, of course. You need a couple of 3/8″ bolts to attach bush wheel 8 (fig. 3) to the cranks 7, and careful adjustment is needed to get the friction on the screwed rods down to a reasonable level. You need a 1″ sprocket, and two 1″ rods. And Fig. 2 shows a 3″ strip vertically at each corner, whereas the parts list seems to assume that two of them are 2 1/2″ strips. Either works though. I also used 6 1/2″ rods for the axles instead of 8″ rods – it looks better that way.
This simple model was included with the old Outfit 7, but wasn’t in Outfit 6. I can’t see why not – the only extra parts needed were two 5″ screwed rods and a third threaded pin. 4 1/2″ screwed rods would work just as well, and they were in Outfit 6. And a long bolt would have substituted for one of the threaded pins. I guess we’ll never know…
This is Super Model number 12, which I completed in early May 2026 after dismantling the Baltic Tank Loco. I couldn’t really build anything until I’d taken the loco to bits as it used so many of my parts, including all my nuts and bolts. My trusty parts spreadsheet told me I had enough parts to be able to build four of the smaller Super Models, so my plan is to build all four over the summer and take them to meets in the autumn. The stone saw is the first of these, and probably the most interesting – to me anyway. As far as I know, it made its first appearance in the 1916 Meccano Instruction Book 1.
First impressions
This is the first model I’ve built using a 1930s clockwork motor, and I was sceptical as to whether it would actually be able to saw through stone. Nevertheless I was going to try. But first I wanted to build the model as illustrated in the leaflet (see photo above). This uses rack strips to represent the saw blade, so clearly can’t actually saw anything.
So I gathered the parts together on a tray, as I generally do. As usual the parts list in the leaflet left something to be desired. It called for 12 of part number 7, which are of course 24.5″ angle girders. It doesn’t need any 24.5″ angle girders, and that should read 12 of part number 8, i.e. 12.5″ angle girders. Not a good start. It turned out that there are also a few things missing altogether from the parts list:
4 more 2.5″ strips (part 5)
4 more angle brackets (part 12)
8 x 0.5″ bolts (part 111a, to mount collars)
4 x 1″ sprockets (part 96)
Additionally, the list of rods given aren’t the best lengths for the job, and I’d guess they were constrained by the statement on the front of the leaflet: “a No. 6 Outfit Model”. Oh, and it turns out the model doesn’t really use a 2.5″ x 1.5″ double angle strip (part 47) or 3 of the 5 2.5″ x 1.5″ double angle strips (part 48a).
The initial build
The build was mostly straightforward, as it’s not a very complex model. The main problem I hit was in building the gantry rails – the track for the overhead trolley to run on. What’s not made clear in the text or the photos is that the gantry rails are not central in the model. They are halfway between the two ends of the saw, but the middle point of the rails is not over the saw. The 5.5″ strips (77 in fig. 2) are only at the front of the model, i.e. above the work table wheel. They bolt to the penultimate holes of the gantry rail 12.5″ girders (24 in figs. 1 and 2), not the third holes from the end, despite what figs. 1 and 2 seem to show. And the equivalent strips to 77 at the back are 3.5″ strips, bolted to the end holes of the girders. All that took a fair bit of working out.
The motor moved the saw, and I was reasonably happy with the model, but it was clearly going to need more than just the addition of a hacksaw blade to get it sawing stone. And the eagle-eyed may notice that I’d mounted the table adjustment wheel in the wrong place.
The working version
To quote from the Super Model leaflet: ‘By substituting a hack saw blade for the Rack Strips that represent the saw, the model may be used for practical purposes.’
To get this model ready for an attempt to saw through rock, it needed toughening up. I was lucky enough to have an old hacksaw blade with holes 30cm apart that were a good fit for a Meccano rod, so that bit was easy. I already knew that a hacksaw blade would cut through slate, so I broke up a broken roofing slate to give me something the right size to saw. Here are the fixes I made to get it more or less working properly:
The swinging frames were nowhere near rigid enough, giving a lot of lateral movement. To resolve this I added 3 more cranks to the top of the frames so each side of each frame was more rigidly attached to its rod. I also doubled up the set screws on the cranks on the right-hand side (rod 4, fig. 1).
The blade wobbled. I fixed this by sandwiching the blade between two collars at each end.
The motor was struggling to saw anything – it stopped as soon as the saw hit stone. I needed to improve the power getting through to the saw:
I extended the 12.5″ strip 6 (fig. 1) by 1.5″ using a 2.5″ strip. This gave better leverage.
I replaced 5″ rod 4 (fig. 1) with a 5.5″ rod, which allowed me to double up crank 5. With 2 set screws for each crank it stopped slipping on the rod.
I added a flywheel to give smoother running, which made a big difference. To do this I raised the motor up 0.5″ using 5.5″ flat girders, replacing the flat trunnion with a corner gusset. This was necessary to get the flywheel off the floor. I replaced the motor rod with a longer one (5″) and mounted the flywheel on the end. I could have added another corner gusset, but it would have added friction, so I didn’t.
The work table needed a bit more flexibility, and I needed to prevent the blade coming into contact with the screwed rods. I raised the work table by 0.5″ by replacing the four 0.5″ reversed angle brackets (part 124) with 1″ reversed angle brackets (part 125). I moved the four corner gussets up one hole, and replaced the four 4.5″ guide rods with 5″ rods.
The screwed rods kept jamming at their base, preventing the table from moving up and down smoothly. The threads were catching on the strips. I fixed this by replacing the two double bent strips with double arm cranks.
To hold the slate in place I made two simple clamps from 0.5″ double brackets, 0.75″ bolts and a couple of nuts. My guess is that the prototype wouldn’t need clamps due to the weight of the stone being sawn, but some things don’t scale!
…and after all this the saw just about cuts through slate. Very slowly! More photos:
I completed this model at the end of March 2026, and took it to the Oxton meet on 25 April. It was big, nearly 4 ft long, and I had to buy more nuts and bolts to complete it. It looks great, and was fun to build. As far as practical I was faithful to the design instructions and illustrations in the 1928 Super Model leaflet as reproduced in Geoff Wright’s book.
As usual, the parts list was inaccurate in places, the instructions didn’t always match the pictures, and the pictures contradicted each other occasionally. All par for the course. One or two things in the instructions were clearly incorrect as well.
But, all the issues were pretty easy to resolve, and it’s a really good one to build. It’s one of the most visually attractive of the Super Models as shown in the leaflets (in my view), and that’s why it was high on my ‘must build’ list. The only snag holding me up was that to be faithful to the original I needed two 25 gramme weights (part no. 67), obsolete since 1940, and quite difficult to get hold of. Luckily a casual query from me resulted in John and Marie finding me a couple of original parts, for which I was very grateful.
Main build issues
I had to bend quite a few strips and plates, and respray quite a few old plates too. I already had a strip bender, but I had to invest in a longer set of rollers to bend the plates. I can recommend John Thorpe‘s rollers.
I don’t have the 4-volt motor used in the original model, and used a post-war E20R motor instead. This has a shorter frame than the pre-war 4-volt motor, so I needed to extend the frame with a couple of flat trunnions to hold the 2.5″ rod that carries 57-tooth gear 24. In the original model this rod also carries a 0.75″ pinion that engages with the 3.5″ gear on the axle for the middle driving wheels. This was trying to move the model too fast for my liking – I only had 6ft of track – so instead I journalled an additional rod in the main frames 2″ in front of the said axle. Instead of the 0.75″ pinion on the trunnion rod I fitted a 0.75″ sprocket, which drove 2″ sprocket on the additional rod. This rod also carried a 0.5″ pinion that drives the 3.5″ gear. This resulted in a speed reduction of about 3.4 times, which gave a more appropriate speed along the track.
I was worried that the motor wouldn’t be capable of propelling the model, which weight about 25lbs. I was pleasantly surprised. Once I’d got everything lined up properly, oiled and greased appropriately, and fixed a design issue (described below), it worked very well. I doubled up all the set screws and grub screws on the main drive train, and bolted a 1.5″ pulley to the 3.5″ gear to give it 4 set screws in total.
I modified the motor control lever slightly by extending the crank 96 with a 2 1/2″ strip. A 4″ made-up strip (as in the leaflet) connected to the left-hand motor switch tag worked a treat.
The model needs 10 x 5.5″ flat girders, not 8 as given in the part list. Similarly it needs 9 x 2″ strips rather than 7, and 11 x 1″ rods rather than 7. Luckily I had them.
The model as designed won’t run on rails, only on a flat surface. The bogie wheel flanges are 1/4″ smaller than those on the driving wheels, and when you put the model on rails this lifts the bogies higher and the bogie frames foul the main frames. To fix this I took the 7.5″ flat girders off the bogie frames and turned the 7.5″ angle girders round so I could journal the axles in the long holes of the girders.
The model still wouldn’t run on the rails shown in fig. 1 of the leaflet. The bolts securing the rails foul the driving wheel flanges. If you want it to really run on rails (as I did) then the rails need redesigning. I bolted two rows of flat girders onto the angle girders of the original rails, loosely bolted, wedged another row of angle girders between the flat girders, then tightened up the bolts until the angle girders were secure. I could probably have found a simpler solution, but this worked.
The weigh shaft (see leaflet page 4 para 2) is specified as a 6.5″ rod, and this was too short. The 3.5″ strip 58 and its crank fouled coupling rods 48a and 49, with no obvious way of adjusting it. By using a built up 7.5″ rod instead, the 3.5″ strip and crank were now outside the coupling rods, and the problem went away.
The side handrails on the boiler are described as 8″ rods, but the illustrations clearly show 10″ rods, i.e. non-standard parts. I resolved this by extending the rods to 10″ with straight rod connectors and 2″ rods.
The lamps can’t be built as described (page 5 para 4 of the leaflet), as far as I can see. The eye piece and double brackets can’t be bolted together like that, or at least I can’t do it. Instead of the eye piece I used a pair of angle brackets outside the double brackets to form the clip. I put a 0.75″ bolt through the long hole of one angle bracket, through one side of the double brackets, through the axle hole of a collar, then through the other side of the double brackets and the other angle bracket. Add a nut, adjust the clip to fit neatly on a lamp iron (i.e. another angle bracket) and tighten the nut. Put a washer, a 0.5″ pulley without boss and another washer on a 3/8″ bolt and screw it into the collar and you’re done.
The front of the boiler isn’t shown in the leaflet. An earlier 4-6-2 version of the model appeared in Meccano Magazine, but it looks a bit ugly so I didn’t copy it. I just added a door handle centrally (a collar bolted to the central hole with another bolt in it for a handle), and a 3.5″ rod mounted vertically on collars on the RHS to represent the hinge.
The photos below show some of the main units of the build as I was going along.
This is the smallest of the Meccano Super Models (number 3 in the series), and in my view it’s a very elegant representation of a 1920s motorbike.
This model featured in Meccano Magazine in January 1926, and the leaflet for the model was first published in 1928. There are some fiddly aspects in the build – smaller fingers would have helped! The original tyres (part 142) are virtually unobtainable, and this model uses modern recreations based on the original Meccano blueprint. To build this model with the usual post-war 3″ tyres (part 142b) would require some redesign, as they would be too bulky to fit.
The leaflet for this model was included in the 1928 to 1934 Outfits 6 and 7, and it was withdrawn in 1935.
The build
This one was a joy to build. It needs some judicious bending of strips and the flat girder that forms the back of the sidecar, and I’d recommend the use of a strip roller for this. My build follows the leaflet faithfully, apart from a slight improvement in the mounting of the headlamp – I’ve used a 1″ threaded rod in the coupling 53 rather than relying on the poorly secured 3/4″ bolt suggested in the leaflet.
The first Meccano loom I can find information about was a competition winner in 1914. A different loom model shared first prize in the 1915/16 competition, and this appears to have been the original model from which the Super Model looms derive. I built the revised Super Model version.
The gathering of the parts
In the early summer of 2024. I plucked up the courage to have a go at building the second version of the Super Model Loom. I’d been collecting parts for a while: as well as an inordinate number of 2 1/2 inch strips it also requires some special parts that haven’t been made by Meccano since WWII, and they probably never made very many in the first place:
A shuttle (part 104). You have to have a Meccano shuttle, or a reproduction of one (brass ones do exist). I was lucky enough to get hold of a 1930s original, looking identical to the one in the Super Model leaflet. It has squared ends to the apertures, rather than the rounded ends I’ve seen in some photos.
A reed hook (part 105). This is not strictly speaking part of the model, but you need one to operate the loom. Meccano reed hooks are like hen’s teeth, but I found what looks to be a similar reed hook here. It did the job perfectly well.
A sand roller (part 106a). Again, you rarely see an original on sale. They are similar to the wood rollers (part 106), but the wood is of slightly larger diameter, and is covered with a perforated thin steel sheet like a fine cheese grater. It’s job is to grip the finished cloth as it comes off the loom, enabling it to be wound onto a wood roller. I made my own, using a wood roller. I wound a strip of paper onto the roller to give it the added diameter. I bought some steel sheet (from here), cut it to size, and perforated it with a fine masonry pin (as used for picture hanging). Hundreds and hundreds of times. Then I nailed it to the roller. It looks the part, and it does the job. By the way, the original Binns Road parts never had sand on them, although apparently Meccano Spain stuck sandpaper round some wood rollers at some point and sold them.

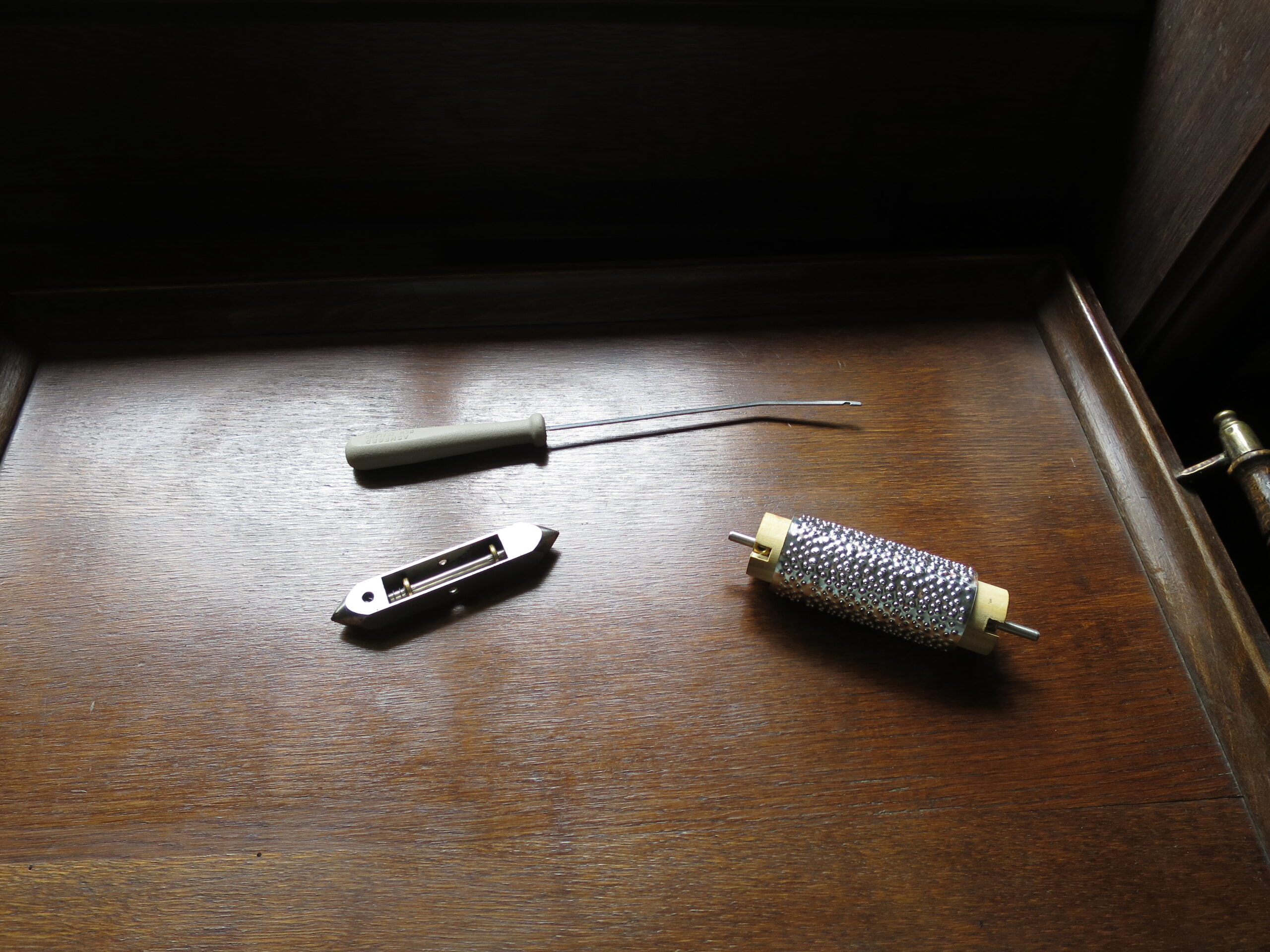

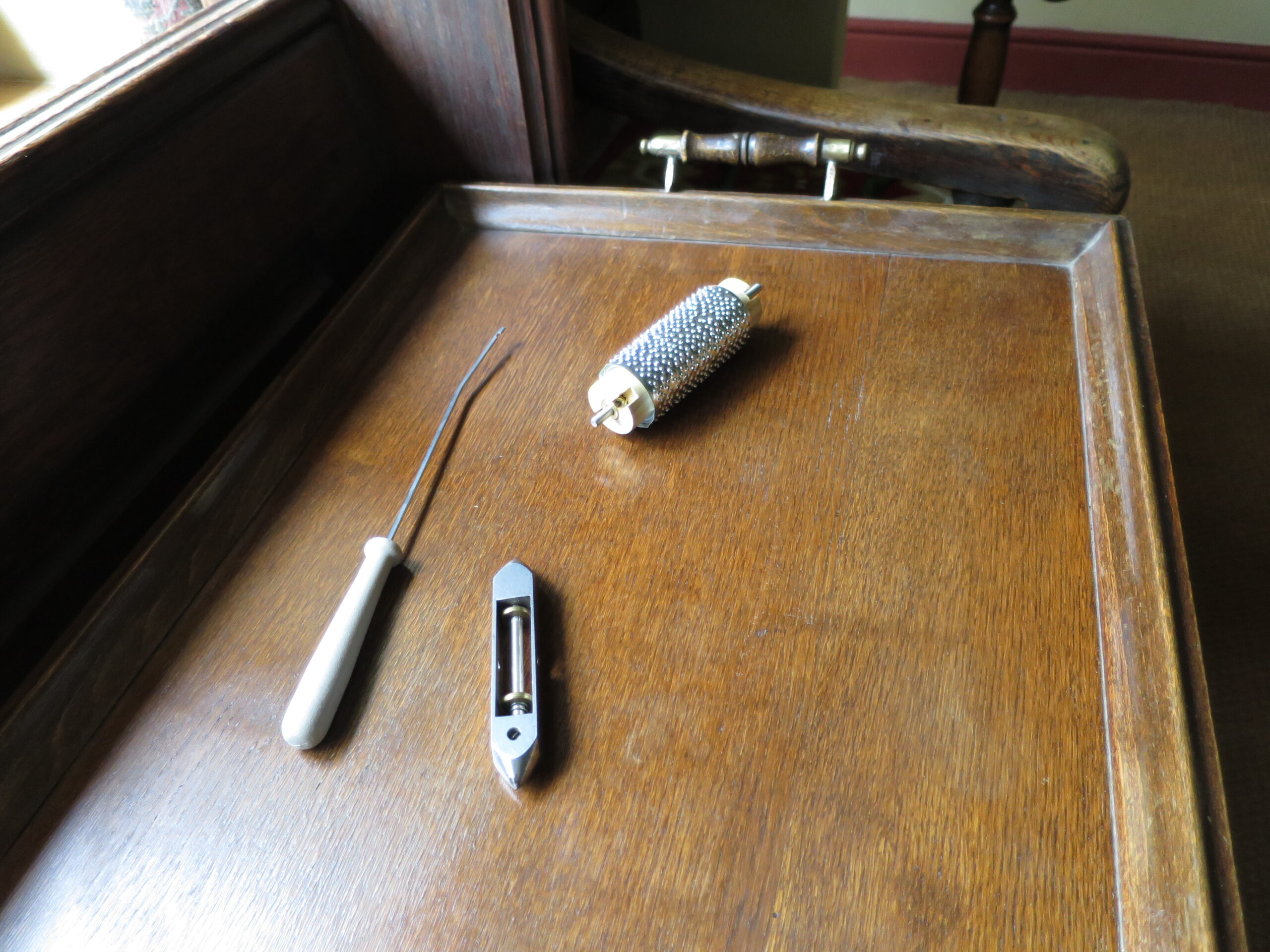

Some photos of these parts:
The hiatus
In July of 2024 I was all ready to tackle building the loom, but I had a serious accident, and for a year I was unable to wield a screwdriver. It was only in the summer of 2025 that I was able to get working seriously on this project. I could still only work at it for a couple of hours a day maximum before things get a bit painful. But to be honest, building this loom was so challenging that a couple of hours a day would be enough anyway…
The loom build
The build went OK really, and eventually the whole loom appeared to be working properly, once I’d lubricated everything and done a fair amount of adjusting. That’s without any yarn though. The picking motion ended up being pretty impressive, flinging the shuttle across pretty quickly, although not completely reliably. The healds look a bit of a mess – the pictures in the leaflet show the healds all neatly parallel, and mine certainly aren’t, but then the leaflet photo was probably doctored anyway, as most of them are.
The instructions aren’t bad really, in that I didn’t find any major mistakes in them. Lack of clarity all over the place of course. As always I had to make some changes to the build where things didn’t work as described, and had to improvise and guess where the info in the text and pictures wasn’t clear enough. Here are the main things I’ve had to fix so far:
The power through the rods needed to drive the complex set of movements is too much for the bolts and grub screws to hold on to the rods. I knew this would happen as the instructions warn you about it. It wasn’t enough just to double up on the screws though. I also put a second bush wheel on the circular plate acting as the crank, fastened each cam to its neighbouring gear wheel using a socket coupling, and doubled up the 4 cranks at the top of the loom that drive the picking motion.
As far as I can see from the leaflet, the spring cord forming part of the picking motion is attached by magic and little else. I used couplings and bolts to attach it to the picking sticks, and spring cord hooks to attach it to the double bent strips.
It’s clear from Figure 1 in the leaflet that the flat trunnion 10 holding the rod suspending the heald frames is mounted centrally on the top girder 5. But this means the heald frames don’t hang centrally. Moving the flat trunnion one hole leftwards fixes this.
The tension springs holding the heald frames down are expanded far too much if they are attached to hooks on the bottom girders 20. Instead I raised the attachment point 2″ by attaching flat trunnions and 2 1/2″ strips to the girders 20.
The tips on page 7 of the leaflet about adding a 2″ flat girder to the cam and doubling up on the springs made a big difference to the picking stick action. I’d recommend them.
More pictures:
The Beaming Frame
The beaming frame was an easy build. There’s a half-inch discrepancy in the retouched Figure 9 in the leaflet – the girders joining the take-up beam to the rest of the frame aren’t level. This is an easy fix though. The long rods that the threads go round on their journey from spool to beam needed some support in my view, so I added strips halfway across to journal them. And it’s important to make the reed on the beaming frame the same width as the wood roller you’re winding on to, so after my first attempt I added more washers to the reed. The first time I tried it I didn’t get the yarn wound evenly across the beam, which messed up the tension.
Loading the yarn onto the beaming frame takes forever. I did this three times in all. Both on the beaming frame and when transferring the yarn to the loom I made us of a number of simple clamps to keep groups of threads from tangling. These were pairs of 2 1/2″ strips bolted together at either end – like hair grips.
The beaming frame:
I needed an easy way to get the yarn off its spools and onto the beaming frame’s spool. I just put a rod into my geared roller bearing, put a loose road wheel on the rod, and fixed a 1″ wheel at the top of the rod. This meant my yarn could unwind from the original spool without me needing to touch it. My hands could then concentrate on winding onto the beaming frame spool.
Trying to get the loom working – or not
To cut a long story short, I never did succeed in getting this loom to weave anything. I tried until I was so sick of it I decided to dismantle it and get on with building something else. Without yarn it appeared to work properly. With yarn, I just couldn’t get it to throw the shuttle across. It kept getting stopped by the warp threads, which wouldn’t separate reliably. I tried finer warp yarn, which improved things, but not enough to weave. I tried increasing the heald frame separation distance by lengthening the strips holding the sprocket chain (point 45 on Figure 5 in the leaflet). This appeared to help a bit too, but again not enough. I’ve not idea how the ‘warp tensioning mechanism’ was supposed to work, as there’s no coherent explanation in the leaflet and no illustration of how to thread it.
I’ll probably come back to this and try building this again, but not before I’ve found someone who’s got one of these working and can advise me. The prime suspects (in my mind) are the suitability of the yarn I used, and the warp tensioning.
Early 2024. I’d been looking forward to building the Super Model traction engine, and it didn’t disappoint. It’s not huge, but its proportions are good, and it operates pretty well. And I wanted to put my resprayed flywheel to use.
Build notes
This one went together pretty easily. There were a number of things to fix of course, the first being that the Super Model uses a 1929-style 6 volt motor, and I’ve not got one. Instead I used an E20R 20-volt motor, and extended it upwards by an inch using a couple of 1 1/2 by 3 inch plates. I also had to widen the rear end of the model by half an inch to get the motor in. So the body was 3 1/2 inches wide at the motor rather than 3 inches, narrowing slightly to 3 inches in front of the motor, so the triangular plates join under the boiler as per the leaflet. This solution simplified the towing point as well, as all you need is a couple of trunnions. The leaflet solution is more complicated in order to get the towing point central across a 3-inch plate.
The second area I made changes in was to the cylinder block and pistons. The cylinder block is a small closed box mounted on top of the boiler, and the pistons move in and out of the block. I can’t believe anyone could get this working as described in the leaflet. It’s difficult to build the block as described, as it’s a closed box with angle brackets mounted inside it that need adjusting to get the pistons to move freely through it without hitting the end of the box. And as described there’s no way in to adjust the angle brackets, and no way to adjust the box’s position on the boiler, which you need to do, as there’s very little leeway between hitting the end of the box and disengaging from the bracket at the other end of the box. All of which will become a lot clearer if you try the build! Anyway I redesigned the cylinder block using double brackets for the pistons to run in (which are automatically lined up), and mounting the cylinder block on the boiler using just angle brackets, which gives some front to back adjustment. This meant the pistons ran smoothly…
…after I also replaced the connections at the other end of the pistons. The original design is pretty Heath-Robinson and has many points of failure. I replaced both connections with single-throw eccentrics, mounting both inside the plates I added to extend the motor sides upwards by an inch (see above). Simpler and better than the original design (and probably not practical with the original motor).
Other than that, I made minor changes to the roof so I didn’t need to bend flat girders, and that’s about it. A good model to build.
